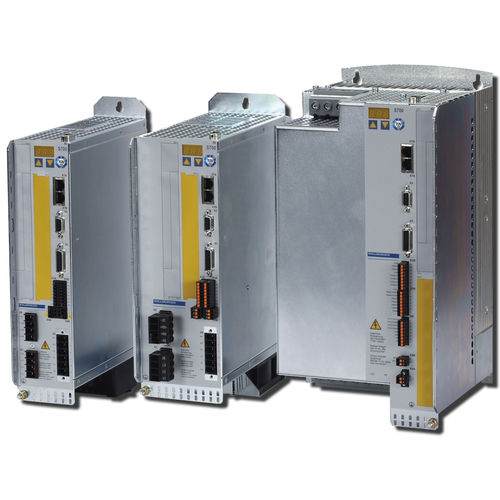

Digital servo-drive S700 series

three-phasesingle-phasemulti-axis

The S700 is a digital servo drive with extended functionality that is ideal for complex drive tasks. It incorporates onboard Ethernet connectivity for use with EtherCAT® and SynqNet™, and the optional MMC memory card enables parameter records and firmware to be easily backed up in the field. A Safe Torque Off function is standard, and other safety functions can be added. Single Cable feedback with both SFD3 and Hiperface DSL is also supported. Features • CE, UL, TÜV safety tested • Operation directly from grounded 110 to 480 VAC, 1 or 3-phase, 50 to 60 Hz lines • Models with maximum continuous output current from 1.5 to 72 Amps RMS/phase • Safe Torque Off (STO) function onboard • Safety expansion cards available with SIL2 or SIL3 safety functions such as SDI, SLS, SS1, SS2, SBC and more • EtherCAT® and CANopen bus communication onboard • Single Cable Feedback SFD3 and Hiperface DSL • Slot for MMC memory card for backup and copy of parameters and firmware • Optimized resolver interface • Autotuning • Cogging suppression • Fastest feedback evaluation on the market Benefits • High-speed current, speed and position control result in higher machine cycle rates • Safety functions SIL2 / SIL3 increase machine availability • IEC 61131 macro programming language inside makes motion flexible • Multi-interface and multi-feedback features provide compatibility with all standard controllers and feedback systems, reducing the need to stock multiple drive types • Onboard EMC filters and integrated power supply and brake resistor enable smaller switchgear cabinets
