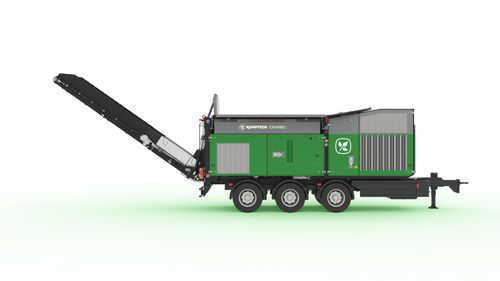

Double-shaft shredder CRAMBO
for woodfor green wastemobile

Double-shaft shredder - CRAMBO - Komptech - for wood / for green waste / mobile
Double-shaft shredder - CRAMBO - Komptech - for wood / for green waste / mobile
Double-shaft shredder - CRAMBO - Komptech - for wood / for green waste / mobile - image - 2
Double-shaft shredder - CRAMBO - Komptech - for wood / for green waste / mobile - image - 3
Double-shaft shredder - CRAMBO - Komptech - for wood / for green waste / mobile - image - 4
Double-shaft shredder - CRAMBO - Komptech - for wood / for green waste / mobile - image - 5
Double-shaft shredder - CRAMBO - Komptech - for wood / for green waste / mobile - image - 6
Add to favorites
Compare this product


Characteristics

Number of shafts
double-shaft
Application
for wood, for green waste
Other characteristics
mobile
Power

Max.: 447,000 W

Min.: 242,000 W

Output

Max.: 100 t/h
(61 lb/s)

Min.: 45 t/h
(28 lb/s)

Rotor diameter

610 mm
(24 in)

Rotational speed

32 rpm, 35 rpm, 39 rpm
(201 rad.min-1, 220 rad.min-1, 245 rad.min-1)

Operating weight

Max.: 25 t
(27.6 us ton)

Min.: 21 t
(23.1 us ton)

Description

The Crambo is one of the best machines there is for shredding all types of wood and green waste. Two slow-running drums with shredding teeth minimize fine particle and noise/dust emissions, and resist contraries. The Crambo enables easy adjustment of the output particle size, by simply exchanging the screen basket to instantly change the particle size. With load-dependent rotation speed regulation, the hydraulic drum drive ensures that full advantage is taken of the engine output. READY FOR ANYTHING In the extra-large shredding chamber, two 2.8 m counterrotating toothed drums ensure positive feed. From bulky branches and cuttings to rootstocks of any size to used wood contaminated with contraries, it shreds everything down to a defined particle size. PARTICLE SIZE AS DESIRED The degree of shredding can be adjusted flexibly, either by changing the screen basket, or even more conveniently by changing the entire screen basket cartridge - and the machine is ready for a new job. SIMPLE AND LOGICAL CONTROL The new operating panel uses symbols that are clearly understandable without text. The menu guidance follows a logic any user can understand, and the screen shows all machine functions graphically. This virtually precludes operator error.

VIDEO
