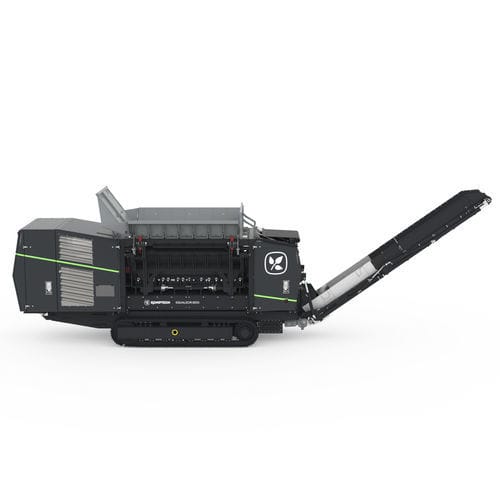

Single-shaft shredder EQUALIZOR
for wastemobilewith conveyor

Single-shaft shredder - EQUALIZOR - Komptech - for waste / mobile / with conveyor
Single-shaft shredder - EQUALIZOR - Komptech - for waste / mobile / with conveyor
Single-shaft shredder - EQUALIZOR - Komptech - for waste / mobile / with conveyor - image - 2
Single-shaft shredder - EQUALIZOR - Komptech - for waste / mobile / with conveyor - image - 3
Add to favorites
Compare this product


Characteristics

Number of shafts
single-shaft
Application
for waste
Other characteristics
mobile, with conveyor
Power

132,000 W, 160,000 W

Output

50 t/h
(31 lb/s)

Rotational speed

Max.: 100 rpm
(628 rad.min-1)

Min.: 50 rpm
(314 rad.min-1)

Operating weight

24 t, 40 t
(26.5 us ton, 44.1 us ton)

Machine Length

6,602 mm, 9,137 mm, 13,468 mm
(260 in, 360 in, 530 in)

Machine Width

2,270 mm, 3,184 mm, 3,485 mm
(89 in, 125 in, 137 in)

Machine Height

2,908 mm, 3,080 mm, 4,122 mm
(114 in, 121 in, 162 in)

Description

With the Equalizor, Komptech is launching a new technology. This new single-shaft shredder is designed for processing commercial, bulky, and household waste for recycling and thermal reclamation. With its Terminator and Crambo genes, the Equalizor is perfect for the job. The high-efficiency direct drive by electric motors on both sides of the drum, a speed range of 50-100 rpm, and precision setting of the cutting gap between drum and counter-cutter all work together to turn out a homogenous product with high throughput. The screen baskets are quick and easy to change, using the same system as on the Crambo. The machine is currently offered as a medium shredder, and shredding units for coarse preshredding and precision post-shredding will follow. The Equalizor is all-electric. If mobility is required there is a Track version which runs on powerful batteries. As usual with Komptech, all maintenance points are easily accessible and operation is intuitive. • Extremely robust construction and tough, durable components on both the stationary and mobile versions • High-efficiency drive system with overload protection, variable drum speed, and reversing function • Easy screen basket change with hydraulically extensible screen basket frame, basket change without tools • Easy access to all maintenance points via integrated service platforms The machine in greater detail Komptech stands for quality, reliability and value retention. This is assured by the use of high-quality components, certified production processes and gapless quality control.
