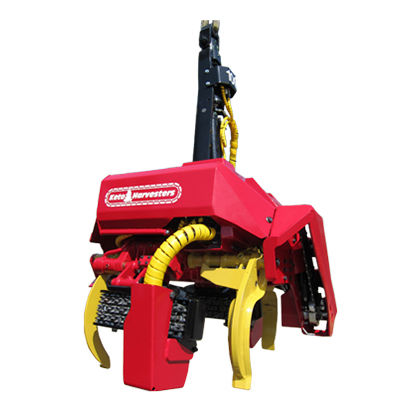

Harvester head Keto-100 LD Eco

The four-knife model of the Keto-100 series is especially suitable for handling trees with butt branches. Two sets of delimbing knives also facilitate grabbing and handling the tree trunk. Thanks to the strong eco tilt, moving tree trunks in vertical position decreases damages to the remaining trees in the thinning area. Height in felling position 1650 mm Height in processing position 1950 mm Width in open position 1120 mm Width in closed position 920 mm Length in processing position 1370 mm Depth in felling position 1030 mm Weight 680 kg Felling diameter 450 mm Delimbing diameter 400 mm Delimbing knives 5 Maximum working pressure 210 bar Recommended pump capacity 190 l/min Saw bar length 22" Feeder type Track Feed force 18 kN Maximum tree weight 1100 kg Maximum feed speed 3,8 m/s Engine power of base machine 70 kW
