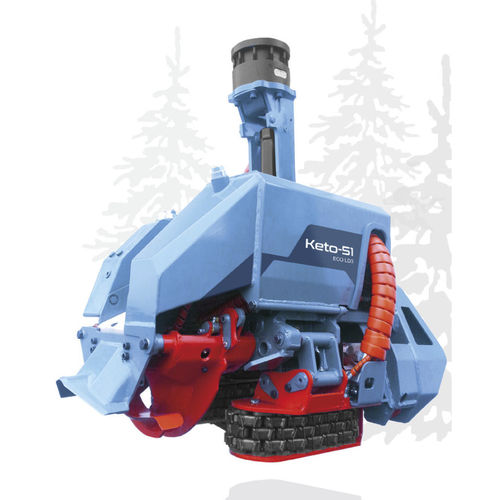

Harvester head KETO-51 ECO LD3

The new harvester is excellent for young wood and older thinning stands. It is very handy, it cuts efficiently and it can even handle big logs with precision. Its precision is better than before and the results of thickness measurements are exact. The harvester's most important new features are a fixed sawing unit and a third delimbing knife in the grab frame. Thanks to the metal protective plate in the tilt, the space between the stump end and the harvester is kept clean automatically. Height in felling position 1220 mm (with +300 mm rotator) Height in processing position 1500 mm (with +300 mm rotator) Width in open position 900 mm Width in closed position 850 mm Length in processing position 1220 mm Depth in felling position 1000 mm Weight 585 kg Felling diameter 370 mm Delimbing diameter 320 mm Delimbing knives 1 fixed + 3 mobile Maximum working pressure 250 bar Recommended pump capacity 160-220 l/min Saw bar length 18" Feeder type Track Feed force 18 kN Maximum tree weight 700 kg Maximum feed speed 4 m/s Engine power of base machine 70 kW Accessories available Mass handling tongs colour marking, stump handling and customized colouring
