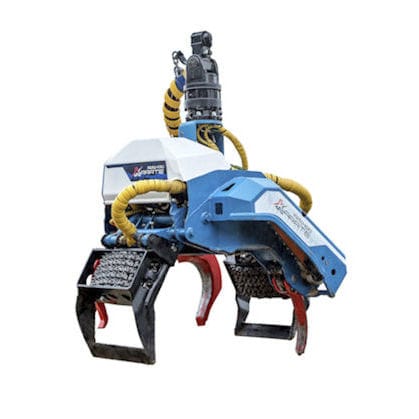

Harvester head KETO-100 KARATE

Keto-100 Karate. Thanks to its large grapple opening, it serves well as a multi-purpose harvester head that handles delimbing, cutting and sorting easily in mountainous terrains with steep slopes. If necessary, it can also be used for loading. The head has a fixed track system, which means that there are fewer wearing parts and that the saw is always in a straight position. Height in felling position1305 mm Height in processing position1330 mm Width in open position1320 mm Width in closed position1020 mm Length in processing position1305 mm Depth in felling position1220 mm Weight810 kg Felling diameter470 mm Delimbing diameter400 mm Delimbing knives4 Maximum working pressure250 bar Recommended pump capacity150 l/min with Karate-system Saw bar length22" Feeder type5-line track Feed force 21 kN Maximum tree weight 1000 kg Maximum feed speed 4,9 m/s Engine power of base machine 49 kW with Karate-system
