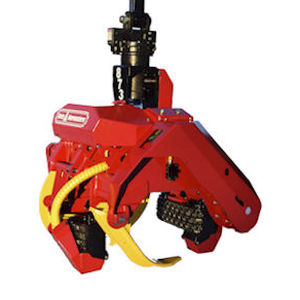

Harvester head KETO-873

The new KETO 873 processor is designed for processing larger trees in demanding conditions of North America and elsewhere. Keto 873 is the latest model of Keto product family. This 3360kg/7400lb head can be installed on 30+ ton tracked base machines. Weight (including rotator and link) 3360 kg Height (to the center of boom hanger pin, bottom arm open)3080 mm Depth (tilt up)1700 mm Width (closed, main frame)1600 mm Width (open outside guards)1970 mm Length2370 mm Saw Bartype 3/4" Top Saw;24"bar type 0.404" Knives/Arms3+1 Maximum opening (knife tip to tip)860 mm Maximum opening (tracks link surface)1020 mm Rotator 360 degrees, oil and electrical pass-through22680 kg Tractive Force ( 500cc motors )39.3 kN Track Feed, pivoting track frames2 tracks Track size (length) 640 mm Track size (width)230 mm Maximum Feeding Speed5.5 m/s Recommended Oil Flow300 -380 l/min Maximum System Pressure260 bar Length Measuring systemdual or single track
