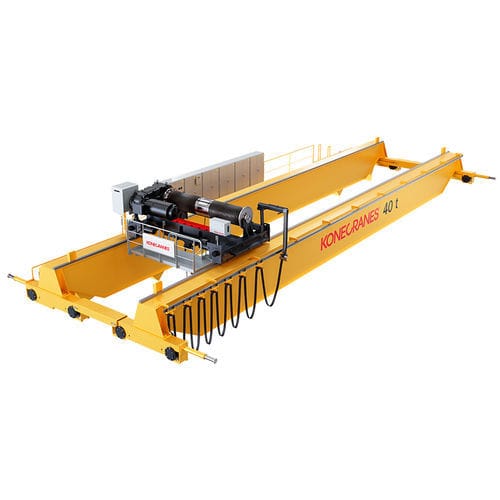

Double-girder overhead travelling crane M series
heavy-dutyautomatedopen winch

Double-girder overhead travelling crane - M series - Konecranes - heavy-duty / automated / open winch
Double-girder overhead travelling crane - M series - Konecranes - heavy-duty / automated / open winch
Double-girder overhead travelling crane - M series - Konecranes - heavy-duty / automated / open winch - image - 2
Double-girder overhead travelling crane - M series - Konecranes - heavy-duty / automated / open winch - image - 3
Double-girder overhead travelling crane - M series - Konecranes - heavy-duty / automated / open winch - image - 4
Add to favorites
Compare this product


Characteristics

Type
double-girder
Other characteristics
automated, open winch, heavy-duty
Lift capacity

70 t
(77.2 us ton)

Span

45 m
(147'07" )

Lifting height

35 m
(114'09" )

Description

A modular masterpiece for demanding processes The Konecranes M-series crane introduces a new level of modularity, delivering the ultimate in power and reliability in perfect harmony. Smaller in size, but bigger in lifting, this crane provides a strong and compact winch full of automated systems and integrated Smart Features for challenging, heavy-duty overhead applications. This smartly packed powerhouse has a lifting capacity of up to 70 tons. Our proven Core of Lifting components return high process performance and maximized up-time, while its modular architecture offers excellent accessibility for short inspection times and safe maintenance. Flexible enough for almost any industrial setting, the M-series is particularly suited to heavy process use. Konecranes M-series cranes have the following standard features: • Core of Lifting components, including motor, gearbox and controls specially designed for crane application. • Extended Speed Range (ESR) allows the hoist to run at up to double the nominal speed, improving cycle times by up to 20% • Unique hoisting machinery suspension improves component lifetime, supports alignment and performance • Improved design of rope reeving decreases rope wear and extends equipment lifetime • Equalizing beam avoids load/bottom block twist with two independent wire ropes instead of one • No exposed rotating connection shafts or couplings eliminates misalignment, reduces wear and improves safety. • Load sensors and condition monitoring unit improves safety • Hook latch trigger makes operation safer and more efficient • Trolley layout supports compact approach dimensions and uniform wheel load distribution

VIDEO

Catalogs

No catalogs are available for this product.

See all of Konecranes‘s catalogs
