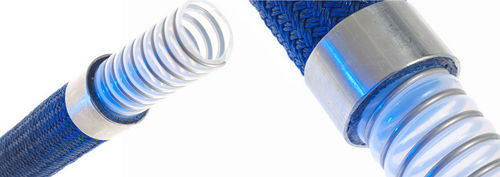

PTFE hose Convo-Flex®for waterfor chemical productsfoodstuff
Add to favorites
Compare this product
Characteristics
- Use
- for water, for chemical products, foodstuff, for fuel, for hydrocarbons, for biofuels, for fresh water, for wastewater, for hazardous fluids, for corrosive fluids, for high-purity fluids, for dry bulk materials, for bulk materials
- Material
- PTFE
- Applications
- high-temperature, cleaning, for medical applications, for lubrication, for vacuum, for chemical applications, transfer, process, for the food industry, heavy-duty, for petrochemical applications, food, low-temperature, for food industry applications, medium-temperature, for pharmaceutical applications, medium-pressure, low-pressure
- Other characteristics
- microbe-resistant, UV-resistant, flexible, abrasion-resistant, weather-resistant, thick wall, inner liner, PTFE-lined, braided polypropylene, corrugated, vibration-resistant, small bend radius, oil-resistant, chemical-resistant, anti-static, anti-corrosion, heat-resistant, extruded, PTFE inner liner, wire-reinforced, stainless steel-braided, high-resistance, fabric-braided, rugged, braided metal, liquid-tight, heat/cold-resistant, electrically-conductive, vacuum, coiled, round, braided, rugged
- Inner diameter
Max.: 150 mm
(5.906 in)Min.: 13.1 mm
(0.516 in)- Outer diameter
Max.: 180 mm
(7.087 in)Min.: 17.9 mm
(0.705 in)- Pressure
Max.: 12 bar
(174.045 psi)Min.: 1.5 bar
(21.756 psi)- Temperature
Max.: 260 °C
(500 °F)Min.: -60 °C
(-76 °F)
Description
Heavy wall extruded convoluted hose used extensively through the process industry due to its self cleaning design and the unique way the hose can be lined through the fittings to make a completely bug free environment for applications where cleanliness is paramount. Also, protects fittings against corrosion in applications transferring aggressive media. Can be coupled with Stainless steel or Polypropylene braids. Can also have an integrated vacuum wire to protect against collapse in vacuum applications.
- Applications:
Used extensively through the process industry
- Inner layer construction:
Helically convoluted medium wall PTFE tube - PTFE according to “ISO12086, Part1. PTFE-E.P.D.M 1.61.C.E.4_12”
- Temperature range:
-60°C to +260°C (-76°F to +500°F)
- Other:
Antistatic liners are available for the Convo-flex range along with various braids.
Catalogs
Convo-Flex
3 Pages
