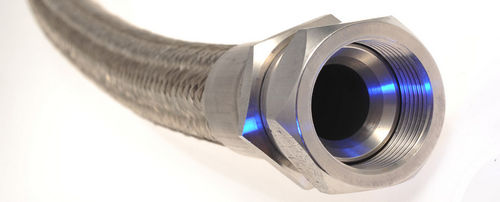

PTFE hose T1700, T2000hydraulicfor chemical productsfoodstuff
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic, for chemical products, foodstuff, for fuel, for hydrocarbons
- Material
- PTFE
- Applications
- high-pressure
- Other characteristics
- smooth, lightweight, anti-static, stainless steel-braided, PTFE inner liner
- Inner diameter
Min.: 5.64 mm
(0.222 in)Max.: 34.93 mm
(1.375 in)- Outer diameter
Min.: 9.53 mm
(0.375 in)Max.: 48.77 mm
(1.92 in)- Pressure
Min.: 276 bar
(4,003.042 psi)Max.: 345 bar
(5,003.802 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 260 °C
(500 °F)
Description
The light-weight high pressure hose with an antistatic PTFE liner performs well above its weight for hydraulic applications . Ideal for applications requiring strength, reliability and long term performance. T1700 has a post sintered antistatic PTFE liner for gas applications
-Applications:
High pressure applications that require strong, lightweight, long performing reliable hoses
- Inner layer construction:
Antistatic smoothbore PTFE tube - PTFE according to “ISO12086, Part 1.PTFE-E.P.D.M 1.6.1.C.E.4_12”
- Outer Layer construction:
High tensile 304 maypole wound Stainless Steel bunch braid
- Temperature range:
-60°C to +260°C (-76°F to +500°F)
- Other:
High pressure antistatic smoothbore PTFE tube with bunch braided high tensile 304 stainless steel
Catalogs
Medium Duty PTFE
1 Pages
