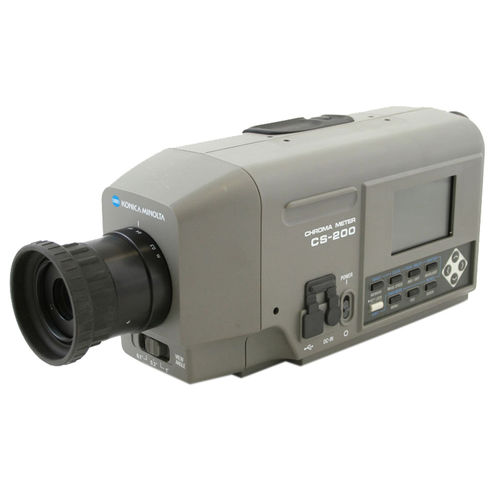

Digital luminance meter CS-200

compactcolorimeter

The CS-200 is designed to measure both luminance and chromaticity with high accuracy. It is a low cost option that is easy to use and features a new auto mode for determining measurement speed according the luminance of the subject being measured. It can measure any light source over a wide range of luminance levels from 0.01 cd/m2 to 20,000,000 cd/m2. The selectable measuring angle feature enables the user to select the optimum angle of 1°, 0.2°, or 0.1° based on the application. The CS-200 is lightweight and battery powered for optimum portability. Data management software CS-S10w is included as a standard accessory. The software enables the user to easily view and manage measurement data. Up to 101 measurement values can be stored in addition to 20 reference values. Features • Portable, lightweight, compact and battery powered • Easy to use and affordable • Selectable measuring range • Measure both luminance and chromaticity • Auto mode to determine measurement speed • Can be used for both low and high luminance • Measuring angle switching • CS-S10w data management software included as a standard accessory
