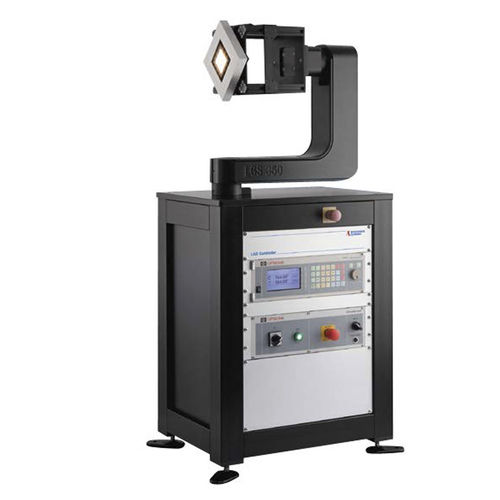

LED module goniophotometer LGS 350

The LGS 350 Goniophotometer/Goniospectroradiometer was created to analyze angle-dependent spatial radiation properties. This particular model is best used with small to medium sized SSL luminaries and LED modules. Test specimens operate from a horizontal burning position. Measurements can be taken at an angular range of plus or minus 160 degrees in the gamma theta axis. When used in conjunction with Instrument Systems spectroradiometer, all spectral quantities such as color temperature, color coordinates and color rendering index are determined as a function of angle. Carry out C-plane measurements very quickly when using the LGS 350 with the Optronik DSP Photometer. The Complete System: The LGS 350 Goniophotometer comes with a sample plate for securing the test specimen. It also has an LGS Controller that controls the stepper motor and angle display. When a photometer is used with the LGS 350 the LGS controller displays measured values in candela or lux. Features • Type C goniophotometer with horizontal optical axis • Samples up to 700 mm diameter and 8 kg weight • Accurate measurement of luminous intensity distribution and luminous flux • Angular-resolved evaluation of spectral and colorimetric quantities • Data export in IES and EULUMDAT format Specifications LGS 350 Goniophotometer Goniometer CIE goniometer type : Type C with horizontal optical axis Driver : Stepper motors Angular range C axis : ± 160° with reset switches Angular range Gamma axis : ± 160° with reset switches Resolution of the angle encoder : 0,01° Reproducibility C axis : ≤ 0,1° (at max. sample load) Reproducibility Gamma axis : ≤ 0,05° (at max. sample load)
