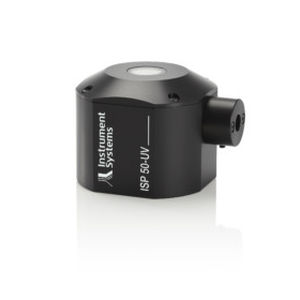

UV measurement integrating sphere ISP 50-UV

Integrating Spheres for UV Instrument Systems offers complete measurement solutions for UV-A, -B and -C radiation starting from 200 nm. The operation of the well-proven Instrument Systems spectroradiometers, e.g. CAS series, with integrating spheres made from PTFE facilitate high sensitivity measurements of UV radiant flux. All Instrument Systems UV measurement solutions with PTFE integrating spheres are delivered with a PTB traceable calibration. Features: • Complete UV measurement solutions • High optical throughput due to the use of highly reflective PTFE material • High sensitivity measurements for UV radiation down to 200 nm • State-of-the-art stray light correction (optional) • Wide selection of optical equipment and accessories • 50 mm inner diameter • 200 – 2500 nm usable wavelength • Application: production, e.g. wafer probing, chip testing • Measurement port options: window
