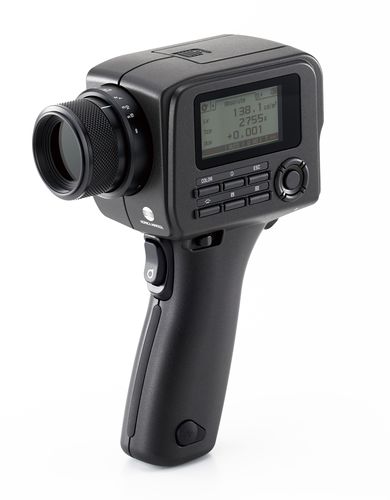

Digital luminance and colour meter CS-150

compactUSB

Next generation portable tristimulus colorimeter for light sources and irradiated objects, commonly used to measure display lights, signal lights and to make non-contact surface colour measurements. These instruments build on the key design features of their predecessor with new features, improved accuracy and increased measurement range. The CS-150 and CS-160 are lightweight, compact and battery powered luminance and colour meters for the measurement of a wide range of luminance conditions and non contact measurement of colour. A worthy successor to the CS-100A, the new instruments offer improved features and usability. These next generation instruments provide an increased measurement range and a sensor that more closely matches the CIE 1931 color-matching functions. To provide the most accurate measurement of luminance, the relative spectral response of the measuring instrument should perfectly match the sensitivity of the human eye for photopic vision, as represented by the CIE spectral luminous efficiency V(λ). Alongside improved usability, the CS-150 and CS-160 feature an improved correlation to V(λ) and a greatly improved measurement range up to 999,900 cd/m2 (CS-150) and 9,999,000 cd/m2 (CS-160). The CS-150 and CS-160 feature the same user friendly features as the popular CS-100A: SLR (single lens reflex) optical system and pistol grip design gives the operator precise control over targeting and ensures that the viewfinder shows the exact area to be measured, even at very short distances. The measured luminance value is displayed inside the viewfinder whilst full measurement data is shown on the large external monochrome display.
