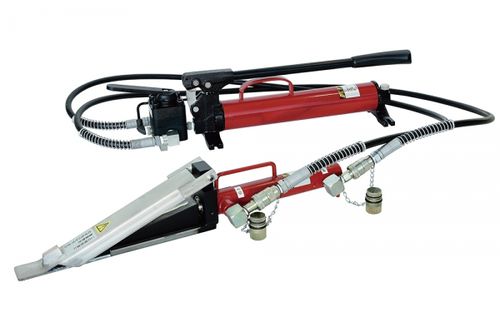

Hydraulic lifting wedge KP-15

Power Wedge is a tool for aligning in 1 mm units while pushing the machine when setting the industrial machine. It can be used without receiving reaction force. •The power wedge is a tool for pushing the machine and aligning it in units of 1 mm when installing the machine. •Unlike the conventional bar, power wedge can be pushed horizontally without damaging the floor. •The reaction force is not required, so the efficiency of side pushing work is improved. Capacity - 15 ton Minimum toe height - 6 mm Maximum toe height - 34 mm Toe length - 40 mm Toe width - 43 mm Wedge length - 629 mm Wedge height - 128 mm Body width - 70.5 mm Cylinder stroke - 150 mm Oil required - 114 cc Set weight - 30 kg
