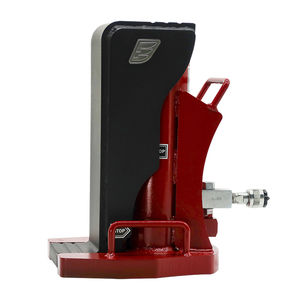

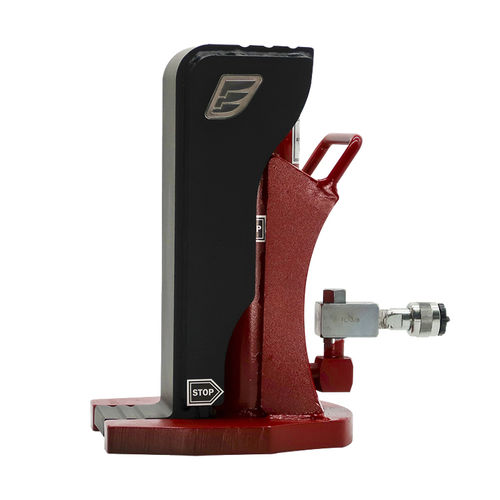

Toe jack KS50-150

hydraulicfor heavy loads

・These hydraulic remote toe jacks are connected with an external pump and a high pressure hose. ・Since operators can operate them remotely, in a small space or in a place where the foothold of machine is unstable, jacking up tasks can be safely completed. ・They can be lowered by the applied load and the speed to get down can be adjusted by controlling their valves. ・They can be operated with a small number of pumping. ・They can be laid on their side, tilted or placed upside down for many kinds of operation. Toe capacity： - 5 ton Head capacity： - 9 ton Minimum toe height：　22 mm Stroke：　150 mm Toe length：　55 mm Toe width　：75 mm Base width：　180 mm Base length：　210 mm Body height：　323 mm Oil required：　239 cm3 Product weight：　22 kg
