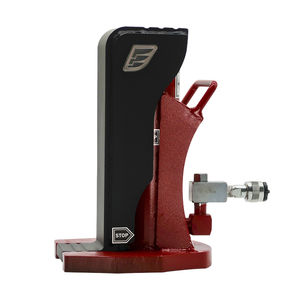

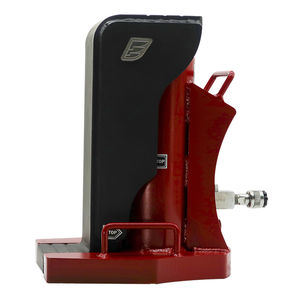

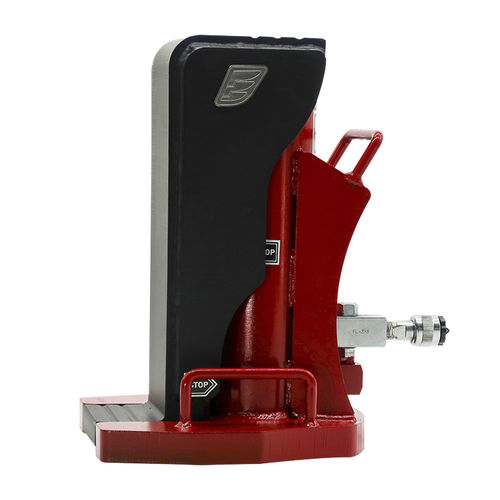

Toe jack KS100-150

hydraulic10 tonsfor heavy loads

・These hydraulic remote toe jacks are connected with an external pump and a high pressure hose. ・Since operators can operate them remotely, in a small space or in a place where the foothold of machine is unstable, jacking up tasks can be safely completed. ・They can be lowered by the applied load and the speed to get down can be adjusted by controlling their valves. ・They can be operated with a small number of pumping. ・They can be laid on their side, tilted or placed upside down for many kinds of operation. Toe capacity：　10 ton Head capacity：　18 ton Minimum toe height：　28 mm Stroke：　150 mm Toe length：　60 mm Toe width：　100 mm Base width：　230 mm Base length：　250 mm Body height：　363 mm Oil required：　453 cm3 Product weight：　41 kg
