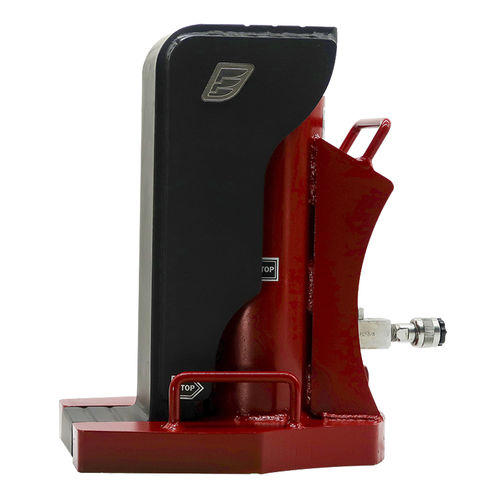

Toe jack KS150-150

hydraulic15 tonsfor heavy loads

・These hydraulic remote toe jacks are connected with an external pump and a high pressure hose. ・Since operators can operate them remotely, in a small space or in a place where the foothold of machine is unstable, jacking up tasks can be safely completed. ・They can be lowered by the applied load and the speed to get down can be adjusted by controlling their valves. ・They can be operated with a small number of pumping. ・They can be laid on their side, tilted or placed upside down for many kinds of operation. Toe capacity：　15 ton Head capacity：　26 ton Minimum toe height：　38mm Stroke：　150 mm Toe length：　70 mm Toe width：　100 mm Base width：　245 mm Base length：　300 mm Body height：　395 mm Oil required：　663 cm3 Product weight：　62 kg
