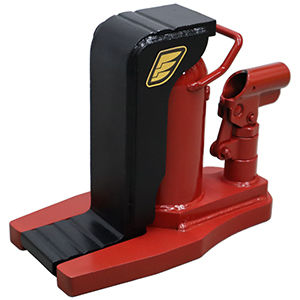

Toe jack E-060L

hydraulic6 tons3 ton

【What is toe jacks】 Toe Jack is a kind of hydraulic bottle jack which is attached with toe part to lift heavy machinery or equipment at very low position gap of about 20 mm Toe jacks are mainly used in the following three situations: ・When changing the direction of the machinery skates while moving the industrial machine. ・When removing the machinery skates from the industrial machine after moving. ・When adjusting the height of the machine during installation, setting up. 【Features】 •A toe jack (also known as a floor jack) is a bottle jack attached with the toe that is designed to lift items with very low or high clearances as long as 20 mm of the gap •Since the toe structural part has two lifting points, i.e. its toe and head points, it can be used for much wider applications than before. •Their insertion sockets can rotate so that their operators can handle pumping at the best positions. •They are equipped with a safety valve to prevent overload, enhancing work safety. 【Three Basic Functions】 ＜1.Lifting＞ It is a very basic function of it. Since both its toe and head can lift its load, its usage is twice than before. ＜2.Adjustment of positioning＞ Toe jack can do position adjustment as fine as an millimeter order. It is best suited for delicate works like machines’ level matching. ＜Widening＞ By placing its base on one side, and its toe on the other side, the toe-jacks can widen the gap between two objects. 【Specification】 Toe capacity： 3ton Head capacity： 6ton Minimum toe height： 22mm Toe length： 80mm Stroke： 115mm Body height： 229mm Base width： 146mm Base length： 275mm Product weight： 15kg
