Kontron

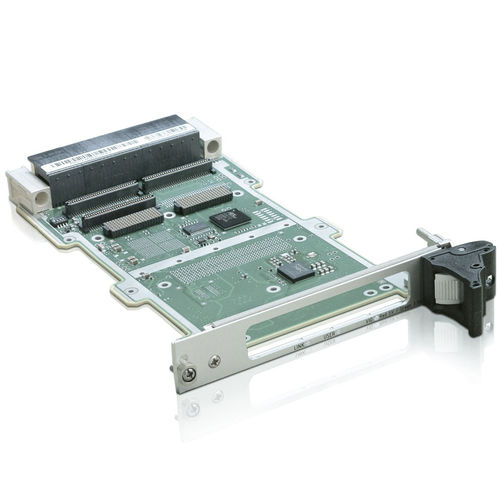

VPX 3U carrier board VX3800

Add to favorites

Compare this product

Go to the Kontron website for more information

Characteristics

Options: VPX 3U

Description

VX3800 is a 3U VPX carrier designed to support any standard XMC/PMC mezzanine and expand I/O flexibility to VPX systems. It provides one XMC/PMC site, alternately used as a PCIbus 32-bit/66 MHz or as an XMC site with either a x4 or a x1 PCI-Express link to the VPX backplane. VX3800 is a member of Kontron's VITA 46 VPX Ecosystem which facilitates the implementation of VPX through an integrated offering.

Catalogs

VPX products & Solutions

9 Pages

Go to the Kontron website for more information
