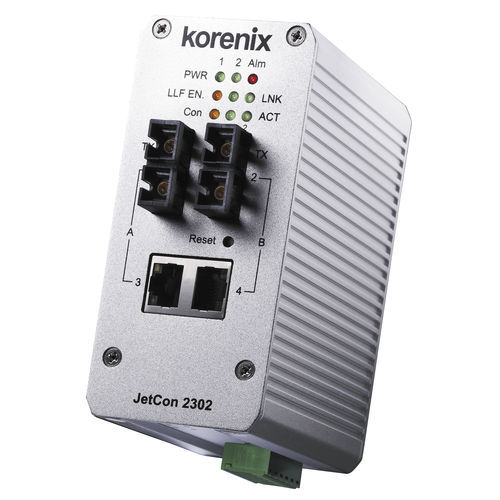

Media converter JetCon 2302

Ethernetfiber opticsindustrial

2-Channel Fast Ethernet to Fiber Media Converter Two Channels 10/100 TX to 100 FX media converter Two 10/100TX with 2 100FX Fast Ethernet Fiber Switch Dual Forwarding modes- Switching and Pure converter Supports Auto MDI/MDI-X, Auto Negotiation Supports Multi-mode 2KM, Single-mode 30KM 3.2Gbps Non-Blocking Switch Fabric Fault Alert for port and power Redundant 10~60V DC Power inputs with DC polarity protection Supports AC 1.5KV Hi-Pot isolation protection EN 50121-3-2 Railway EMC compliance (applying) Operating temperature -25~75°C (-40~75°C wide operating temperature model available by request) - - - - - - Product Introduction JetCon 2302 is not only a compact 4-port switch, but also a 2 channel RJ45 to fiber media converter - an ideal model that would physically fit in harsh environments with intensive severe electromagnetic interference. In switch mode, JetCon 2302 is an Industrial 4-port 10/100Mbps Fast Ethernet Fiber Switch, incorporating 3.2Gbps switching fabric with non-blocking store and forward technology to fulfill the high transmission performance requirements. In converter mode, JetCon 2302 is an Industrial 2-channel 10/100 TX to 100 FX media converter, with an alarm relay to trigger out a real alarm signal for port or power events.
