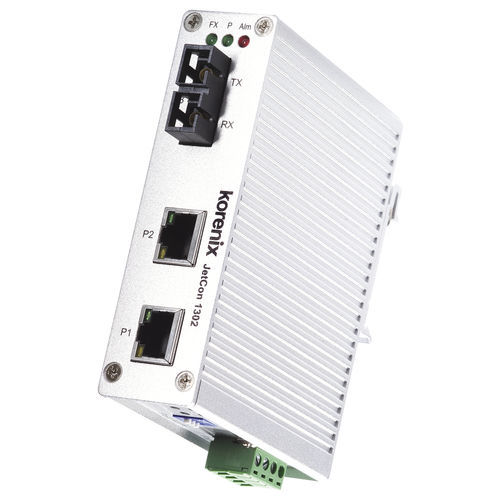

Media converter JetCon 1302

Ethernetfiber opticsDIN rail

2-Port Fast Ethernet to Fiber Media Converter Two 10/100 TX ports to One 100FX port media converter Supports Auto MDI/MDI-X, Auto Negotiation Supports Multi-mode 2KM, Single-mode 30KM Fault Relay Output for port alarm Dual modes for power input, AC18-27V/DC18-32V Compact Aluminum case with IP31 grade protection Supports AC1.5KV Hi-Pot isolation protection Operating temperature -10~70°C (-40~70°C wide operating temperature model available by request) - - - - Product Introduction JetCon 1302 is not only a compact 2-port RJ45 to fiber media converter, but also a slim 3-port switch which is an ideal model that would physically fit in a network environment with limited space. The feature of fault relay alarm aims to inform you whenever there is any port link down. Just move up the DIP switch, and the fault relay alarm will start functioning! Single-mode and Multimode fiber optic ports meet your needs for long distance transmission of up to 30KM. JetCon 1302 can be easily wall mounted as well as be mounted directly on DIN rail. AC 18V~27V or DC 18V~32V is available for different operating environments. With IP 31 rigid and compact aluminum case, 1.5KV Hi-Pot isolation protection, CE/FCC regulatory approvals, and 5-year global warranty, JetCon 1302 series are your reliable choices for hazardous applications.
