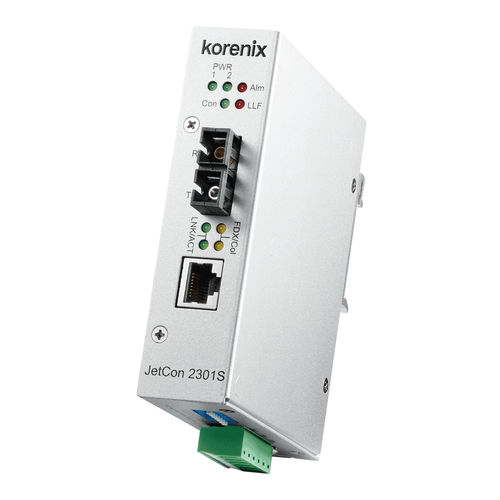

Media converter JetCon 2301S

Ethernetfiber opticsfast

Fast Ethernet to Fiber Media Converter One port 10/100 TX to 100 FX media converter Auto Link Loss Forwarding for fault detection Supports Multi-forwarding mode : switch mode, modify cut-through, pure converter and converter with auto-change mode System Fault Relay Output Supports Auto MDI/MDI-X, Auto Negotiation Supports Multi-mode 2KM, Single-mode 30KM Extreme Low Data Forwarding Latency- 1.6 x 10-6 S Redundant Wide range 10~60V DC Power inputs with DC polarity protection IP-31 grade protection Supports 1.5KV Hi-Pot isolation protection -40~75℃ operating temperature for hazardous environment applications - - - - - - Product Introduction JetCon 2301S is a single port Fast Ethernet to Fiber media converter, compliant with EN61000-6-4, EN50121-1, and EN 50121-4 Railway standards to provide excellent performance under harsh environments featuring intensive vibration/shock and severe electromagnetic interference. Users can benefit from the Single-mode and Multi-mode fiber optic ports of the media converter for providing extended distance transmission of up to 30KM.
