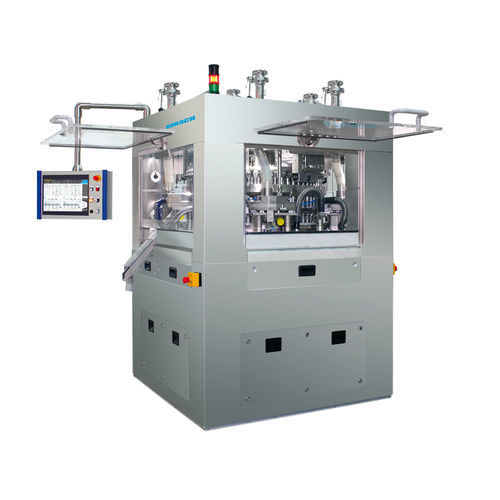

Rotary tablet press TRP 900

5-layers

With a press force capability up to 50 kN the TRP 900 offer a rugged, flexible, and advanced design that supports five-layer tablet production. The tool holders with double guide rollers, ensures smooth punch travel and no wear on the punch heads or cams. Build for continuous 24/7 operation, the TRP 900 has proven to be effective across a wide range of formats and applications, delivering excellent product quality and unparalleled uptimes. PHARMA & NUTRACEUTICALS Due to its deep fill capability up to 40 mm, the TRP 900 is used for pharmaceutical applications in multi-layer field for five-layer tablet production. The machine can be manufactured as a Wash-in-Place and containment execution. ROBUST DESIGN The TRP 900 is based on the design of technical rotary presses which must be workhorses – in the most demanding environments, they must be productive, efficient and extremely reliable. SUPERIOR OUTPUT The maximum output is 120.600 tablets per hour at 30 RPM. The TRP 900 is clearly intended for continuous, high-speed production, and is designed to operate a minimum of 160 hours without any significant maintenance or service. MULTI-LAYER CAPABILITY The TRP 900 can be delivered as a multi-layer rotary press for five-layer tablet production, with: Low tamping force measurement and control capability for multi-layer formats On-demand layer sampling at production speeds Absolute separation of layers – closed feeder design Dust extraction to prevent cross contamination PRESS TOOLS The punches are roller guided on both sides and shafts with patented heavy duty profile heads permit extremely high loads and eliminate wear on press tools and compression rollers.
