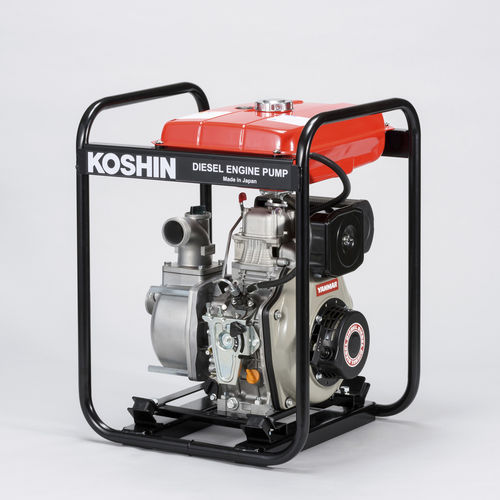

Impeller pump STY-50Dwaterslurrydiesel engine
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water, slurry
- Operation
- diesel engine
- Mobility
- stationary, mobile
- Domain
- for the mining industry
- Other characteristics
- suction
- Flow
630 l/min
(166.42839 us gal/min)- Head
30 m
(98'05" )- Power
3.1 kW, 3.5 kW
(4.21 hp, 4.76 hp)- Length
548 mm
(22 in)- Width
513 mm
(20.2 in)- Height
698 mm
(27.48 in)- Weight
45.1 kg, 50.3 kg
(99.43 lb, 110.89 lb)
Description
Engine Pump Semi Trash Pump Yanmar STY-50D
For Sandy and Muddy Water
• Long operation time with large fuel tank.
• Suitable for mining construction site.
• SIC
Silicon Carbide Mechanical Seal 4-5 times more durable than Standard Carbon Ceramic mechanical seal.
• FCD
Spheroidal Graphite Iron Casting for Impeller & Volute Casing 6.5 times more erosion resistance than Standard FC or Cast Iron.
■Outstanding Features
• Suitable for Sandy and Muddy Water usage
• Particles up to 9 mm can be pumped through
• Guaranteed suction lift of 8 meters
• Long bolt assembly for easy maintenance
