Impeller pump STY-100Dwaterslurrydiesel engine
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water, slurry
- Operation
- diesel engine
- Mobility
- stationary, mobile
- Domain
- for the mining industry
- Other characteristics
- suction
- Flow
1,250 l/min
(330.21507 us gal/min)- Head
28 m
(91'10" )- Power
4.4 kW, 4.9 kW
(5.98 hp, 6.66 hp)- Length
668 mm
(26 in)- Width
513 mm
(20.2 in)- Height
788 mm
(31.02 in)- Weight
68.6 kg, 77.5 kg
(151.24 lb, 170.86 lb)
Description

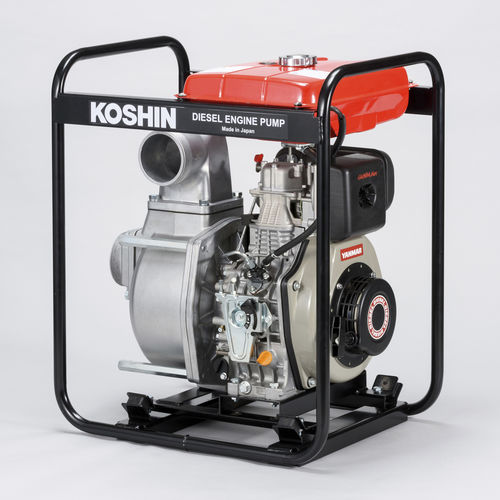

Engine Pump Semi Trash Pump Yanmar STY-100D
For Sandy and Muddy Water
• Long operation time with large fuel tank.
• Suitable for mining construction site.
• SIC
Silicon Carbide Mechanical Seal 4-5 times more durable than Standard Carbon Ceramic mechanical seal.
• FCD
Spheroidal Graphite Iron Casting for Impeller & Volute Casing 6.5 times more erosion resistance than Standard FC or Cast Iron.
■Outstanding Features
• Suitable for Sandy and Muddy Water usage
• Particles up to 9 mm can be pumped through
• Guaranteed suction lift of 8 meters
• Long bolt assembly for easy maintenance
