Multicyclon separator KD-500

sludgesandconstruction

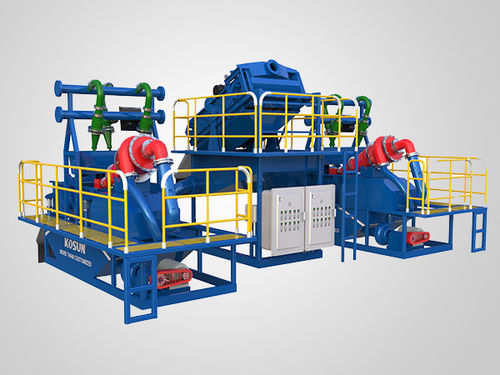

KOSUN KD-500 slurry treatment system for mud balance shield is of modular structure design, which is specialized for mud purification in medium slurry balance shield construction projects. KD-500 system consists of scalping shaker module and two sets of desanding modules. Equipped with coarse-mesh screens, the scalping shaker module is used to remove large particles, and the desanding module is equipped with a desander and a primary shaker. The mud falls into the collecting box via scalping shaker, and then is divided into two sets of desanding modules through two connecting pipes. Each desanding module is equipped with a desander for sand removal from the mud. After two staged treatment, the recycling effect can be achieved. Main Technical Parameters of KD-500 Slurry Treatment System for Mud Balance Shield: Max. Capacity: 500m³/h Max. Mud Density: 1.18g/cm³ Sand Content (measured by elutriation meter):<18% Main Body Volume: 4.6m³ External Dimensions: 7600×4050×3900mm Total Power: 212kW
