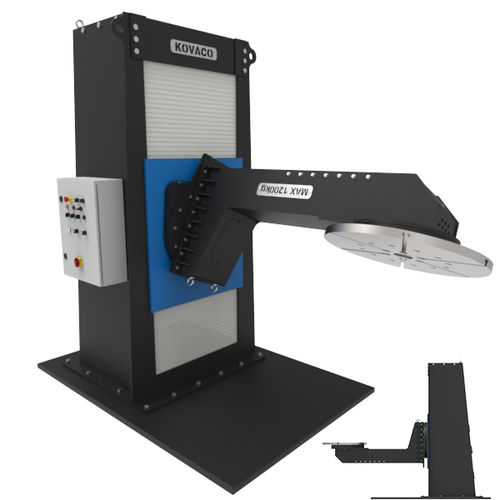

Electro-hydraulic welding positioner SPK series
rotary3-axis

electro-hydraulic welding positioner
electro-hydraulic welding positioner
electro-hydraulic welding positioner
electro-hydraulic welding positioner
electro-hydraulic welding positioner
electro-hydraulic welding positioner
electro-hydraulic welding positioner
electro-hydraulic welding positioner
electro-hydraulic welding positioner
Add to favorites
Compare this product


Characteristics

Type
electro-hydraulic
Orientation
rotary
Number of axes
3-axis

Description

SPK electro-hydraulic welding positioner Bearing capacity 1200kg – 15000kg Choose the right one from following options (see image "Technical specification" to compare): SPK 12 25 50 100 or 150 A fully covered three-axis positioner allows independent position adjustments in three axes. The hydraulic arm lift significantly speeds up height adjustment compared to screw positioners. The positioner, even in its basic design, allows smooth adjustment of the table rotation speed in the entire range and the table control with a START-STOP system. Various equipment levels of the control system further expand the controlling options. In addition to manual operation, the positioner can be equipped with a position programming system. - Fully covered - Hydraulic arm lift - Option to change the arm position and thus the centre of gravity of the weldment - Stepless arm rotation speed control - Stepless table rotation speed control with START-STOP - Anchoring required - Optional remote control - Optional foot switch for START-STOP - Optional programming positions - Optional customization of the clamping table to customer specification - Optional arm extension - Optional lift increase - Optional steel base plate (substitution for anchoring) Key features: Table lift Table rotation Arm rotation

VIDEO
