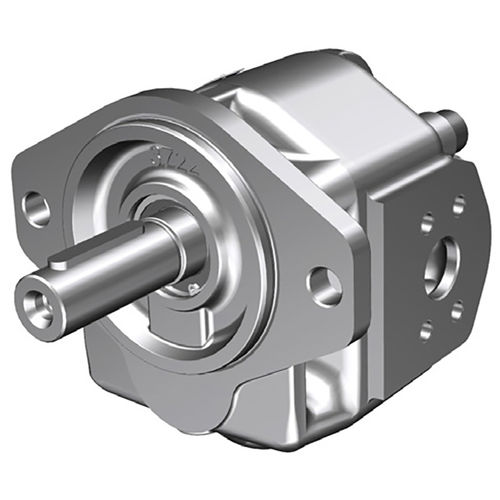

Gear hydraulic motor KM 3high-pressurecast iron
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Other characteristics
- high-pressure, cast iron
- Pressure
Min.: 0 bar
(0 psi)Max.: 230 bar
(3,336 psi)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,000 rpm
(18,849.56 rad.min-1)- Displacement
Min.: 63 cm³
(2.13 US fl oz)Max.: 125 cm³
(4.23 US fl oz)
Description
KM series high pressure gear motors are mainly used in oil-hydraulic plants. They are suitable both for hydraulic fluids as well as mineral oil bases (DIN 51524/25) and engine oils (DIN 51511).
The housing components are made from high-grade cast iron, the shaft and gears from hardened and ground case-hardening steel. The shafts are supported in multi-layer bearings that have excellent antifriction properties. The seals in the drive shaft ends are made using solely NBR or FKM shaft seals. An outboard bearing is placed on the shaft end to handle radial and axial forces.
Catalogs
High pressure gear motors KM 3
12 Pages
