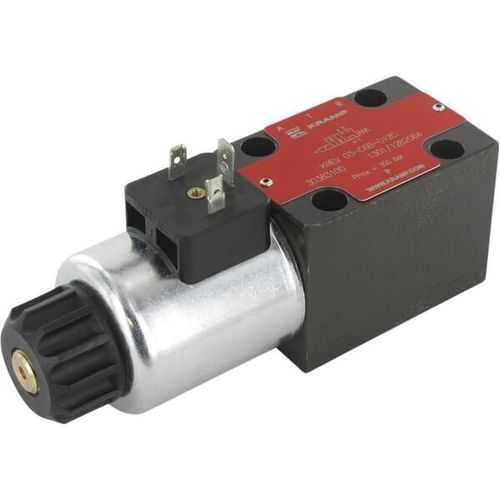

Poppet hydraulic directional control valve KREV03C6B012Celectrically-operated
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Actuating method
- electrically-operated
- Operating pressure
210 bar
(3,045.79 psi)- Flow rate
80 l/min
(21.1 us gal/min)
Description
Unit
-
Each
-
Specifications
-
Electromagnetic operation
-
Benefits
-
Coil can be adjusted to any desired position
-
Properties
-
Dimensions comply with DIN 24 340/ISO 4401/CETOP RP121-H
-
Consists of
-
Valve
Coil
Without plug
-
Technical information
-
Minimum purity of the medium: ISO 4406 19/17/14 (NAS 8)
-
A
-
31 mm
-
B
-
40.5 mm
-
C
-
32.5 mm
-
Flow rate
-
80 l/min
-
Working pressure max.
-
Max. T 210 bar BAR
-
Plunger
-
C6B
-
Plunger
-
C6B
-
Voltage
-
12V DC V
