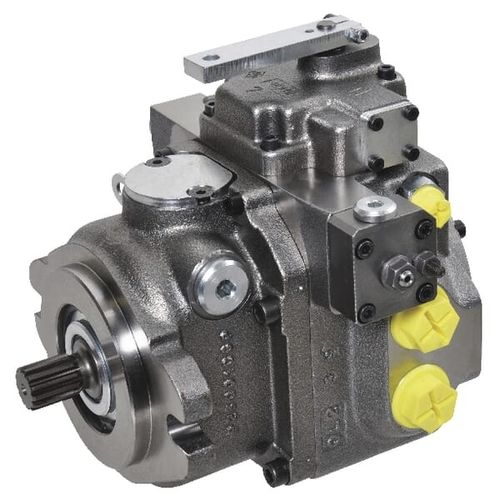

Hydraulic piston pump KCLPC221R006hydraulically-operatedfor industrial applicationscompact
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- hydraulically-operated
- Applications
- for industrial applications
- Other characteristics
- compact, adjustable
- Pressure
250 bar
(3,626 psi)- Speed
Min.: 700 rpm
(4,398 rad.min-1)Max.: 3,600 rpm
(22,619 rad.min-1)
Description
Unit
-
Each
-
Benefits
-
Compact design
Through connection possible
Multiple pump control options
-
Application
-
Transmission
High flow at medium pressure
For use as a fertiliser pump, winch drive, mobile applications and much more
-
Technical information
-
Robust housing
Adjustable maximum stroke count
-
Max peak pressure [bar]
-
350
-
Rotation max.
-
3600 r/min
-
Rotational speed min.
-
700 r/min
-
P (Charge pump)
-
20 BAR
-
Q (Charge pump) cc/rev
-
11 cm³/rev
-
Veer
-
250 BAR
-
Nominal pressure
-
250 BAR
-
Control
-
Manuel lever with feedback
-
Through shaft options
-
Without through drive with charge pump
-
Shaft type
-
Spline shaft T13-16/32-DP
-
Stroke volume
-
21 cm³/rev
