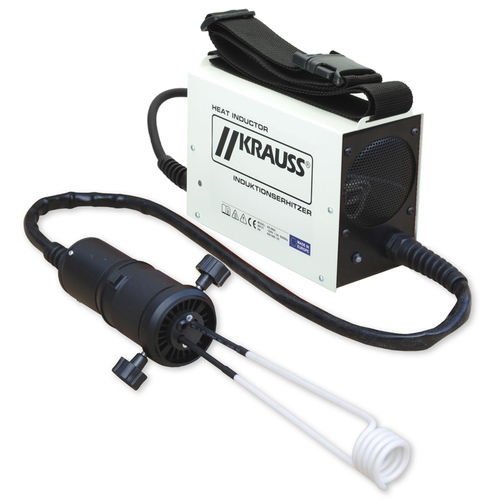

Metal sheet induction heater

for heat treatment230 V

Product information "Induction heater / Induction Set 6 pcs." Function of the induction heater When inductively heating an alternating magnetic field is generated at the workpiece surface. The change in direction within this field effects in conjunction with the electrical resistance the heating of the workpiece. This makes it possible to heat up especially metals quickly and easily. In just 15 seconds can be rusted M12 nuts and bolts heat up to more than + 800 ° C. The induction heater is an indispensable tool in any car repair workshop. Package Includes: - Induction heater - Induction cable Ø19 mm / M8 - Induction cable Ø26 mm / M12 - Flexible Induction cable length 1000 mm - Inductions pad for surface heat input - Carrying case Technical specifications Rated Voltage: - 230 VAC, 50/60 Hz. Power consumption: - 1,5 kVA Operating frequency: - 25-60 kHz, automatically setting Overload protection: - yes Automatic Ventilator Control: - yes Approvals: EN 60336-1 und 3 EN 55011 EN 61000-6-2 EN 61000-6-4 Dimensions: - 200 x 140 x 75 mm (LxWxH) Tool Weight: - 4,5 kg
