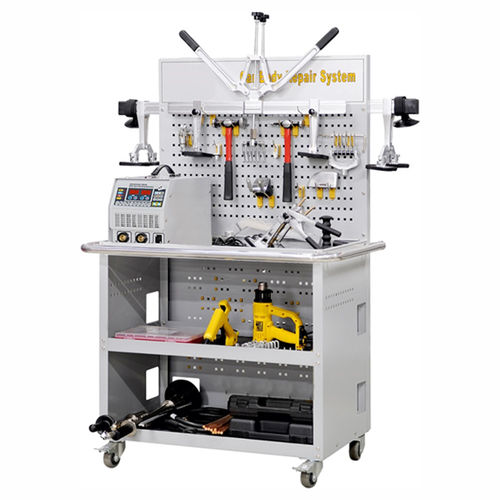

Trolley-mounted body repair system 4200

with welder

Product information "Car Body Repair System 4200" Body repair station / Car body repair System 4200 Inverter spot welder for bodywork applications Multifunctional conditioner for automatic control of the spot welding parameters depending on the tool and the sheet thickness Spot Welding / Impact Welding Welding of crowns, eyelets, etc. Bulging or knocking out of hailstorms or elimination of similar car body damage Heating, upsetting, repair of sheet metal with carbon electrode Technical specifications: Power supply: - Please choose Fuse: - 16A (slow blowing) Welding power: - 18kVA Open circuit voltage: - 1-13V AC Welding current: - max. 2600A Current regulation: - 0-100% (stepless adjustable) Welding time regulation: - 0-99ms (stepless adjustable) Spot welding thickness: - max. 0,8+1,2mm Welding programs: - 10 Protection class: - IP21 Welding cable length: - 2,5m incl. gun Dimensions: - 585 x 975 x 1460mm (LxWxD) Weight: - 225kg Scope of delivery: 1 Inverter spot welding machine, 1 welding gun and ground cable, 3 shear bridges 750, 850 and 1250mm, 2 buckles 4 hooks and 6 hooks, 1 universal buckling pliers, 1 sliding hammer with pull hook, 1 sliding column with pressure air suction button, 1 set of pull-out systems adhesive technology, 1 pull lever with star electrode and 1 tool box 250 pcs
