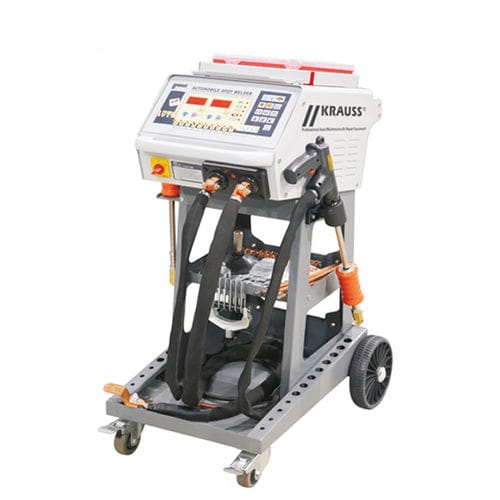

Trolley-mounted body repair system 3200

with welder

Product information "Car Body Repair System 3200" Body repair station / Car body repair System 3200 Inverter spot welder for bodywork applications Multifunctional conditioner for automatic control of spot welding parameters depending on tool and sheet density Spot Welding / Impact Welding Welding of crowns, eyelets, etc. Bulging or knocking out of hailstorms or elimination of similar car body damage Heating, upsetting, repair of sheet metal with carbon electrode Technical specifications: Power supply: - 400V/2-Phases Fuse: - 32 A (slow blowing) Welding power: - 19kVA Open circuit voltage: - 1-13V AC Welding current: - max. 5000A Current regulation: - 0-100% (stepless adjustable) Welding time regulation: - 0-99ms (stepless adjustable) Spot welding Thickness: - max. 0,8+1,2mm Welding programs: - 10 Protection class: - IP21 Welding cable length: - 2,5m incl. gun Dimensions - 570 x 370 x 890mm (LxWxD) Weight: - 49kg Scope of delivery: Inverter spot welding machine, welding gun and ground cable, sliding hammer with pull hook, sliding hammer with electrode for buckling saddle, sliding hammer with compressed air suction button 150mm, buckle 6 hooks, tool box
