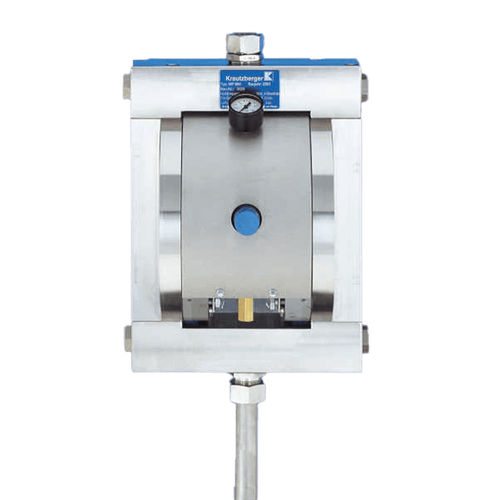

Diaphragm pump MP 560

paintfor solventsfor adhesives

The compressed air-driven Krautzberger diaphragm pumps are specifically tailored to requirements in the field of spraying technology. The compact and sturdy design permits universal use, and the large valve cross sections also allow use with highly viscous media. A mounted pressure equalisation container ensures smooth and low-pulsation operation. A material pressure regulator installed downstream (a suitable material filter is also recommended) permits precision setting of extremely small pressures. The technical data are based on an air inlet pressure of 8 bar. The pumps of course also function perfectly at low pressures. Krautzberger diaphragm pumps are also used where piston or centrifugal pumps cannot be used ? for example, for the transport of paints, lacquers, glues, dispersions, solvents, oil, glazing agents, enamel, wood preservation agents, mineral oil products etc. The pump body is made of stainless steel as standard. This makes it extremely resistant to wear. The pumps are equipped for wall mounting as standard but can also (on request) be supplied on a trolley with a storage surface for the material container.
