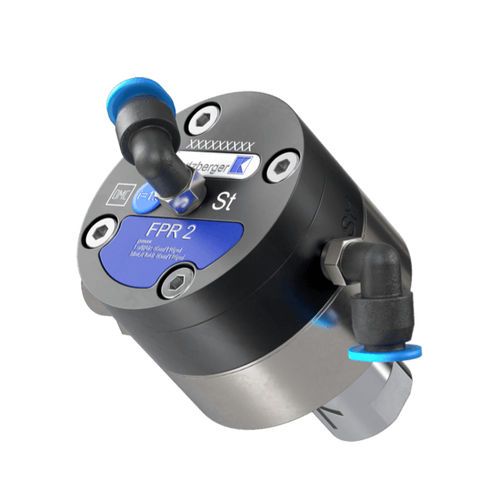

Compressed air pressure regulator FPR 2

for waterdiaphragmsingle-stage

The new Krautzberger FPR 2 material pressure regulators are designed to deliver precise and accurate regulation of the material flow. In addition to the standard 1:1 ratio, the reduction ratios 1:2 and 1:5 are also available. Our XLINE production and testing procedures enable us to integrate complete functional testing of the new XLINE FPR 2 fluid pressure regulators into our process. Features: Modern & Compact Design Long Lasting Components Three reduction ratios available Stable and accurate at very low Easy exchange to change the reduction ratio Pressure fluctuations compensated in a highly dynamic manner when switching diaphragm pumps All material-carrying parts made of stainless steel (except diaphragm) Ball seat optionally available in Tungsten Carbide Easy cleaning process when changing material Optional quick-flush control function available for cleaning process Easy exchange of the valve cartridge Fine adjustment for precise material quantity. Technical information: Demensions: Width with fastening 54.5 mm, Height 81 mm, Ø 49 mm Connections: Material connections: 1/4" male, optional 3/8” male Weight: approx. 370 g Maximum flow rate: 3,8 l/min (tested in a 1:1 ratio with water and an 8/6 material hose)
