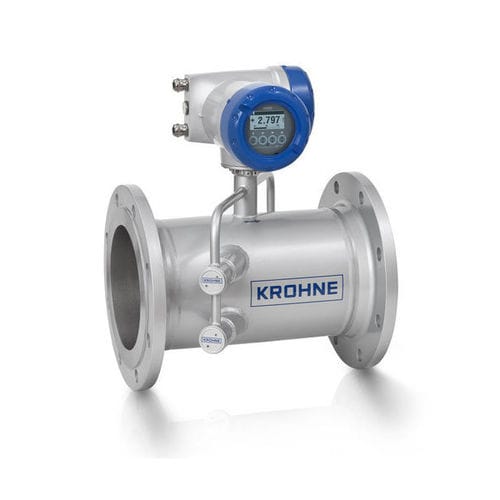

Ultrasonic flow meter OPTISONIC 7300

for gasflangein-line

Gas flow meter OPTISONIC 7300 Ultrasonic flowmeter for natural gas, process gas and utility gas applications* 2-path meter, for standard volume flow metering, independent of media properties * No maintenance, no pressure loss, large dynamic range * Flange: DN50…1000 / 2…40", max. PN450 / ASME Cl 2500; also weld-in connections * 3 x 4…20 mA, HART®, Modbus, FF The OPTISONIC 7300 is a universal 2-path ultrasonic gas flowmeter for process and utility gas measurements in oil and gas refineries or the chemical or petrochemical industries. It is also suitable for non-custody transfer natural gas applications or applications with (compressed) air, mixed or flue gases (up to +180°C / +356°F). Using the transit time differential measuring principle, the OPTISONIC 7300 delivers high performance over a wide flow range (up to DN600 / 24", turndown ratio: 100:1). Its patented titanium transducers are perfectly focused, equalizing process fluctuations and avoiding acoustic feedback. The measured volume flow can always be calculated to standard conditions using the input of temperature and pressure sensors, which can be directly connected to the device. Following the initial calibration, the device provides accurate measuring results (±1% error of measured value). The OPTISONIC 7300 does not have the limitations associated with turbine or other traditional gas flowmeters like periodical recalibrations, maintenance, pressure loss and a limited flow range. The flowmeter comes with various digital communication options. Product highlights * Bi-directional flow measurement over a wide dynamic range (turndown ratio: 100:1)
