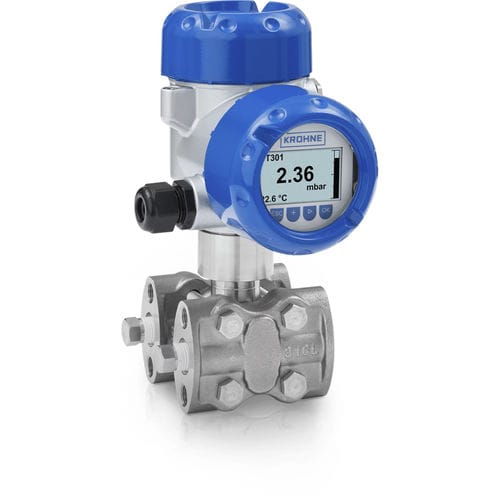

Differential pressure transmitter OPTIBAR DP 7060
vacuumpiezoresistiveceramic

Differential pressure transmitter - OPTIBAR DP 7060 - KROHNE Messtechnik GmbH - vacuum / piezoresistive / ceramic
Differential pressure transmitter - OPTIBAR DP 7060 - KROHNE Messtechnik GmbH - vacuum / piezoresistive / ceramic
Add to favorites
Compare this product


Characteristics

Pressure type
differential, vacuum
Technology
ceramic, piezoresistive
Output
analog
Other characteristics
two-wire, fast response time
Pressure range

Min.: 30 mbar
(0.44 psi)

Max.: 16,000 mbar
(232.06 psi)

Process temperature

150 °C
(302 °F)

Description

Differential pressure transmitter for flow, level, differential pressure, density and interface measurements* High performance DP transmitter with integrated line pressure measurement * Measuring range: 30 mbar…16bar / 0.44…232 psi; Line pressure: up to 400 bar / 5800 psi * Reference accuracy of ±0.065% * 2-wire, 4…20 mA/HART®, FF, Profibus-PA The OPTIBAR DP 7060 is a differential pressure transmitter with integrated absolute pressure measurement. It offers a high degree of modularity for various flow, hydrostatic level or process pressure applications. For DP flow measurements it can be perfectly combined with the KROHNE primary elements (e.g. orifice plates or pitot tubes). Equipped with diaphragm seals, it is the right choice for hydrostatic level, interface, density or demanding DP process applications. Featuring a quick response time of just 125 ms, the DP transmitter offers high accuracy and measurement stability under all process conditions. KROHNE is the only manufacturer of process instrumentation to carry out a total 3D linearization of its differential pressure transmitter. For a robust and accurate differential pressure measurement, even under changing process conditions, each OPTIBAR DP 7060 differential pressure transmitter is linearized in all three dimensions during calibration: differential pressure, ambient temperature and static pressure are taken into account in combination. Since the full specified operating range is covered, an utmost stable and accurate measurement under all process conditions is guaranteed. Product highlights * Outstanding temperature and static pressure stability even under harsh conditions
