Differential pressure flow measurement orifice plate OPTIBAR series

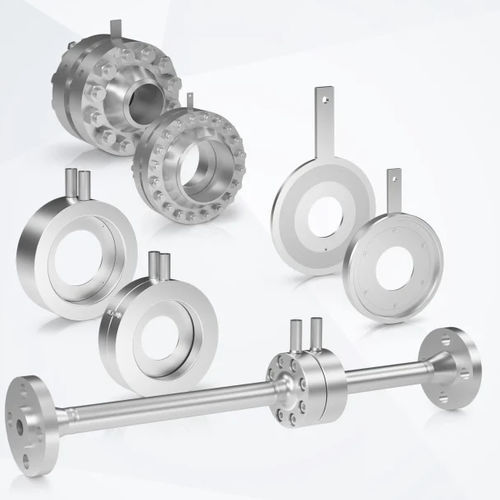

Orifice meter OPTIBAR series Orifice meter run assembly with corner taps and annular chambers* Completely pre-assembled with orifice plate, piping, inlet/outlet sections, process connections * Size: DN15…100 / 1⁄2…4"; up to PN100 / ASME Cl 1500 * Temperature: max. +400°C / +752°F * Material: 1.4404 / 316L The OPTIBAR MR 4300 is an orifice meter assembly. It is ideally suitable for use in small line sizes It comes completely pre-assembled and ready for installation, with orifice plate, annular chambers, process connections as well as inlet and outlet sections for low-disturbance flow. The DP flow element is available with the OPTIBAR DP 7060 DP pressure transmitter as well as with manifolds, valves, condensate pots or other accessories. Product highlights * Compact or separate design * Upstream and downstream sections acc. to DIN 19214 * Reduces flow disturbances * Minimum measurement uncertainties: ±0.3…0.4% (calibrated) * Optional water-calibrated version for increased accuracy (±0.3%) Typical applications * For differential pressure flow measurement with OPTIBAR DP 7060 transmitter * Liquid, gas and steam applications in small line sizes * DP flow applications with increased accuracy requirements
