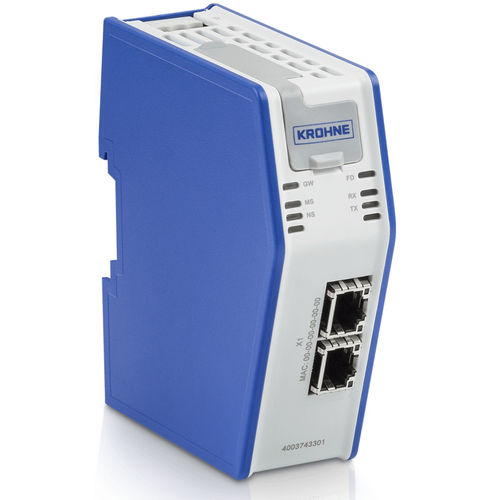

Ethernet interface module MFC 010

EtherNet/IP Interface box for configuration, maintenance and diagnostics of flowmeters • Communication or retrofit option for Coriolis mass flowmeters with Modbus converter (MFC 010) • For seamless connection between flowmeter and an EtherNet/IP™ network • Smooth integration into major EtherNet/IP™ host systems • Integrated 2-port Ethernet switch for flexible network topologies The EtherNet/IP™ Interface Box equips OPTIMASS 1010, OPTIMASS 3010 and OPTIMASS 7010 instruments with a state-of-the-art EtherNet/IP™ interface. Designed for installation in a control cabinet, it offers a full-featured web-interface for configuration, maintenance and diagnostics, and for smooth and intuitive integration into major EtherNet/IP™ host systems, e.g. Rockwell and Schneider Electric. An integrated 2-port Ethernet switch allows for flexible network topologies: multiple devices can be connected without the need for an external switch. If the application requires redundancy, the EtherNet/IP™ interface can also be deployed in ring topology. The integrated web server allows field device configuration and diagnosis using standard devices such as tablet PCs. Product highlights • Interface box for configuration, maintenance and diagnostics • Support of Device Level Ring (DLR) for redundancy • Password protected web server to facilitate configuration and diagnosis of the device • Electronic Data Sheet (EDS) available for convenient deployment • Add-On Instruction (AOI) available for use in Rockwell environments • Communicates via Modbus RTU Protocol with the attached field device Typical applications Food and beverage industry • Seamless integration into EtherNet/IP™ environments
