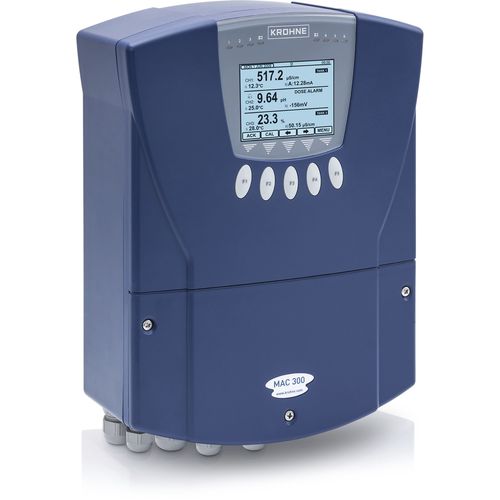

Liquids analyzer MAC 300

for the food industrypHconductivity

Liquid analytical transmitter for measurements with OPTISENS TSS, pH/ORP and COND sensors • Output: max. 6 x 4…20 mA, max. 6 x relay or optional Modbus • Input: up to 3 x sensor • -20…+50°C / +4…+122°F (ambient) • Robust housing for wall-mount or panel-mount installation The MAC 300 is a menu driven transmitter for continuous measurement of analytical parameters in liquid applications with the key sensors being the OPTISENS TSS 3000 and 7000. The transmitter can be installed with a user selected combination of up to three sensors. It is suited for wall-mount or panel-mount installation. The MAC 300 features communication options for up to six analogue (0/4…20 mA) and up to six relay outputs or Modbus interface. Product highlights • Transmitter for OPTISENS TSS 3000 and TSS 7000 series • Can be used in combination with pH, ORP, conductive conductivity and suspended solids sensors • Menu driven transmitter for up to three measurements • Optional live trending and data logging • SD card slot to save parameter sets or upload new firmware • PC / ABS housing (IP66/67, NEMA 4/4X) Typical applications • Water and wastewater industry • Power industry • Chemical and other process industries • Food and beverage industry
