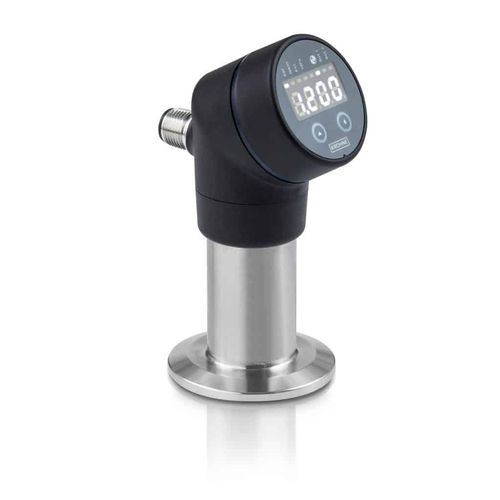

Flush diaphragm pressure switch OPITBAR PSM 2010
electronicabsolutePNP

Flush diaphragm pressure switch - OPITBAR PSM 2010 - KROHNE Messtechnik GmbH - electronic / absolute / PNP
Flush diaphragm pressure switch - OPITBAR PSM 2010 - KROHNE Messtechnik GmbH - electronic / absolute / PNP
Flush diaphragm pressure switch - OPITBAR PSM 2010 - KROHNE Messtechnik GmbH - electronic / absolute / PNP - image - 2
Add to favorites
Compare this product


Characteristics

Technology
electronic, flush diaphragm
Pressure type
absolute
Contact type
PNP, NPN, with IO-Link interface
Protection level
IP67
Applications
for the food industry, for hygienic applications, for the pharmaceutical industry
Pressure range

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.15 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Description

electronic pressure switch OPTIBAR PSM 2010 The OPTIBAR PSM 2010 is an electronic pressure switch for applications in the food and beverage industry as well as the pharmaceutical industry. Its hygienic construction comes with a fully welded front-flush diaphragm to meet the most stringent industrial requirements in terms of crevice-free installation. The pressure switch provides long-term stable absolute or gauge pressure measurement of liquids and gases as well as hydrostatic level measurement. Due to its advanced digital compensation, the OPTIBAR PSM 2010 offers excellent temperature stability even during SIP/CIP cleaning cycles. The OPTIBAR PSM 2010 offers multiple output options in one single configuration. Standard IO is a PNP/NPN switching output and IO-Link. On the secondary output, analogue 4…20 mA / 0…10 V or PNP/NPN switching are selectable. The IO-Link communication provides operators with sensor and application data for smarter process automation.
