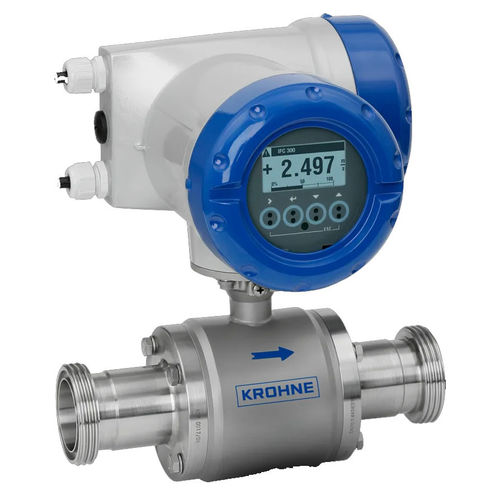

Electromagnetic flow meter OPTIFLUX 6300
for liquidsModbusHART

electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Fluid
for liquids
Communication
Modbus, HART, PROFIBUS PA, PROFIBUS DP
Applications
sanitary
Other characteristics
high-accuracy
Process temperature

Min.: 0 °C
(32 °F)

Max.: 140 °C
(284 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.15 psi)

Description

Liquid flow meter OPTIFLUX 6000 Electromagnetic flowmeter for advanced hygienic applications * (±0.2%), for exact dosing or filling in the food sector * Meter size: DN2.5…150 / 1⁄10…6" (3A, EHEDG certified) * Many hygienic fittings * 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET The OPTIFLUX 6300 is an electromagnetic flowmeter (EMF) for advanced hygienic applications in the food sector. The high-end flowmeter is particularly suitable for blending, dosing or filling applications where a high accuracy (±0.2% of measured value) is priority and extensive diagnostics are required. In addition, it can even be used for low conductivity liquids of ≥ 1 μS/cm (e.g. glucose, fruit concentrates). The 3A and EHEDG certified flowmeter comes with industry specific installation lengths. It has no crevices, gaps or blind spots and is specifically designed to stay clean and sterile. This way, it complies with the most stringent demands in the food and beverage industry. Due to its reinforced PFA liner, the OPTIFLUX 6300 also withstands high process temperatures (up to +140°C /+ 284°F) and vacuum impacts. The EMF can be used in CIP or SIP cleaning procedures. In addition to flange and weld-end connections, the OPTIFLUX 6300 offers a large number of other hygienic fittings, including DIN 11851, DIN 11864, clamp and SMS. It also comes with various digital communication options. A full on-site verification of the meter without process interruption can be carried out using the OPTICHECK service tool.
