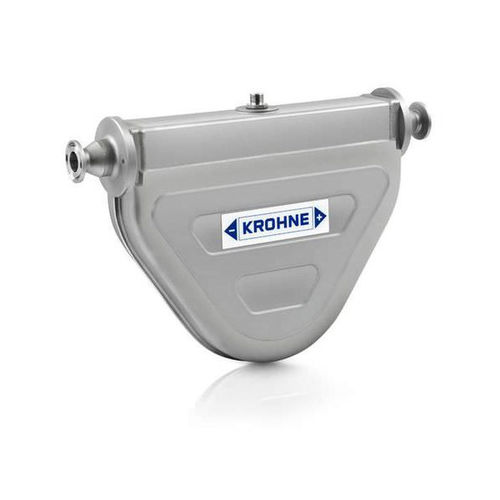

Mass flow meter OPTIBATCH 4011 C

Coriolisfor airfor dosing

Coriolis mass flowmeter for linear and rotating filling machines* High accuracy batching of conductive and non-conductive liquids * Meter size: DN8…15 (FDA, EC1935/2004 etc.) * Many hygienic fittings * Integrated Modbus The OPTIBATCH 4011 is the standard Coriolis mass flowmeter for process batching of conductive and non-conductive liquids. It is a highly accurate and specialised meter for linear and rotating filling machines. The fully welded maintenance-free device with twin U-shape is particularly suitable for hygienic applications in the pharmaceutical or food and beverage industries. It can be equipped with DIN11864-2 hygienic flange connections, hygienic clamp connections or many other bespoke fittings according to customer specifications. The OPTIBATCH 4011 does not require a separate converter due to its integrated electronics. The flowmeter can be connected to a PLC or DCS via the simple Modbus interface. This allows programming, commissioning and measurement over a single data connection. Product highlights * Twin bent tube design for process batching * No separate converter needed: Communication direct from meter * Excellent low flow stability, accuracy and repeatability * Stainless steel construction for hygienic or non-hygienic applications * Welded outer casing, sealed to IP67 * Immunity to crosstalk: resistant to installation and process effects Typical applications Machinery and apparatus (OEM industry), food and beverage industry * Integration into rotating, linear and other filling machines * Fast and precise process batching, filling, blending and dosing * Hygienic or non-hygienic dosing and filling
