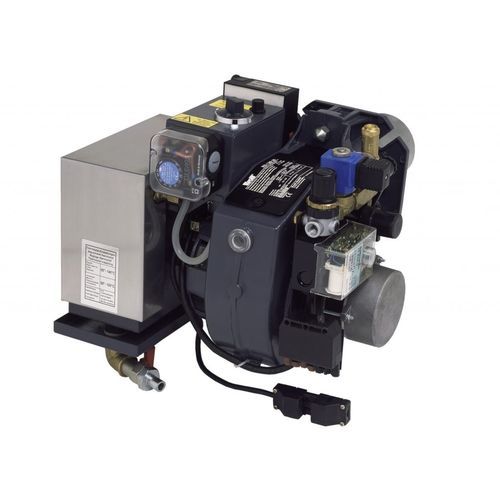

Monobloc burner KG/UB series

nozzle mixpilotradiant

With the Kroll universal oil burner type KG/UB you get a true all-rounder among oil burners; without special tools you can effortlessly choose between different oils as fuel while observing national standards. Thanks to the smart design, you only need a few hand movements to set the right preheating temperature and the ratio between combustion air and fuel. Thus, in combination with a warm air heater, you can heat your large commercial or industrial spaces such as workshops, production halls or storage areas in the most economical and comfortable way. If you choose vegetable oils, you get another advantage; the energetic density is close to the values of heating oil, while vegetable oils are CO2-neutral and do not contain any sulphur or heavy metals. The fuel is atomised by means of compressed air through relatively large nozzle diameters. This is particularly helpful for avoiding clogging with dirty or viscous oils. A separate delivery system draws your desired fuel from the storage tank, filters it and preheats it. The tank located on the burner ensures that a constant volume flow of fuel to the ignition electrode prevails; this ensures constant and perfect combustion. TÜV-tested according to DIN 51605 Free fuel choice (observe national standards) Intuitive operation Maintenance-friendly Optionally with patented ZVP tube Whether you have a cast iron or steel burner chamber in your boiler, the additional use of our patented ZVP pipe and a ceramic fibre plate ensures a so-called "hot combustion chamber". The patented ZVP pipe contributes to lowering the flue gas temperature, increasing the CO2 values, reducing the soot number and prolonging the life of your burner.
