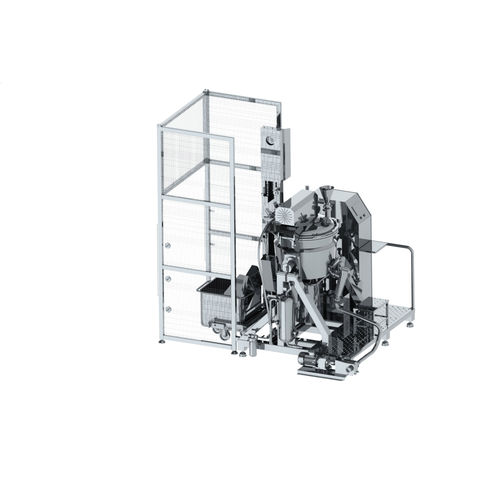

KR-150 CREAM CHEESE MACHİNE(SINGLE MACHINE)
WITH PLC TIP PISTOL, VACUUM TUBE, WATER METER, CIP UNIT, PNEUMATIC FILLING, LIFT SYSTEM (SINGLE MACHINE)
Product Details
Net Loading Capacity 120 KG.
Max. Heat Implementation (+95ºC)
Electricity Waste 29,00 kW/h
Vapour Waste 50,60 kg/h
Vapour Pressure 2-3 BAR
Air Waste 60 lt/dak.
Materials and properties to be used:
All materials are AISI quality stainless steel
2nd wall, indirect steam pressure 2 Bar (atmospheres open)
Lower mix motor 22 kW 0-3000 rpm. (Inverter controlled)
Upper mixer reducer 2,2 kW 61 rpm. (Brake reducer)
DN 65 product output with actuated butterfly valve and filter after output (800 m)
Product additional input (with funnel)
Vacuum tube is available for picking up unwanted odors.
Pneumatic piston is available to overcome the process boiler
Pneumatic piston lifting system is available.
2 bar Direct Steam input and 1 "steam filter in 0.1 micron filtration range.
Manometer with 1 to 6 bar indication is available.
1 "Nw32 (opens in overpressure) safety valve (set to 0.5 Bar).
The main steam inlet of the machine is 1 "hose-head, direct and indirect steam inlet ¾" pneumatic valve.
Observation glass with DN80 union connection and lighting system.with DN50 union connection are available
The water inlet, vacuum inlet and CIP inlet on the top cover will collect in one line, each with separate pneumatic valve.
