Water filter KDF-VB
double-basketpressuresuction

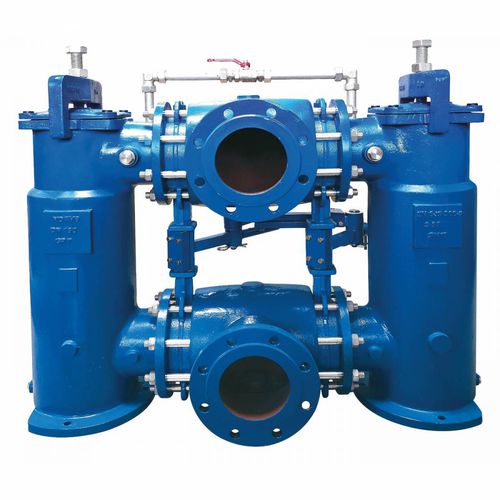

Water filter - KDF-VB - Krone Filter Solutions GmbH  - double-basket / pressure / suction
Water filter - KDF-VB - Krone Filter Solutions GmbH  - double-basket / pressure / suction
Water filter - KDF-VB - Krone Filter Solutions GmbH  - double-basket / pressure / suction - image - 2
Water filter - KDF-VB - Krone Filter Solutions GmbH  - double-basket / pressure / suction - image - 3
Water filter - KDF-VB - Krone Filter Solutions GmbH  - double-basket / pressure / suction - image - 4
Add to favorites
Compare this product


Characteristics

Designed for
water
Filtration element
double-basket
Filtration method
pressure
Applications
suction, fine filtration
Material
steel, cast iron, bronze
Other characteristics
duplex
Operating pressure

Min.: 6 bar
(87.023 psi)

Max.: 16 bar
(232.06 psi)

Filtration size

Min.: 10 µm

Max.: 1,000 µm

Flow

Min.: 30 m³/h
(1,059.44 ft³/h)

Max.: 440 m³/h
(15,538.453 ft³/h)

Description

Duplex filter DN50-1000 / 2“-40“ with maintenance-friendly butterfly valve switching Made of ductile cast iron GGG-50/ EN GJS-500-07 (optional with rubber lining inside), Bronze, Steel, Stainless steel, GRP and more Many sizes available from stock Available with Quick-release clamp Tailor made customized solutions The KDF-VB duplex filter can be installed in pressure and in suction line and is versatile for coarse and fine filtration. It is characterized by continuous operation during the cleaning phase. The duplex filter comprises two identical single filters connected via a valve-switching device with butterfly valves, which can be switched to only one filter body or can be operated in parallel. Each single filter consists of a cast or welded body, cover and filter insert. The filter insert is a basket strainer or ring type strainer made of perforated plate covered with a stainless steel mesh. The medium to be filtered enters the filter basket from the top and flows through the insert inside out. Dirt thus remains in the filter element.
