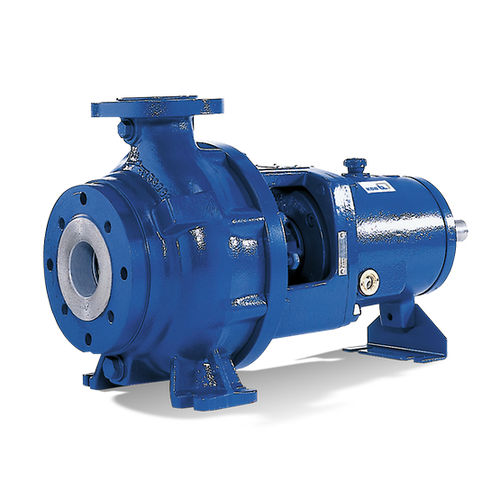

Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and vortex impeller. ATEX-compliant version available.
Benefits
Easy to service thanks to back pull-out design
Safe design: all pressure-retaining components cast with extra corrosion/wear allowance.
Standard pump with suction-side wear plate in wear-resistant diagonal gap design
High levels of efficiency with channel-type impeller; impeller with front vanes and diagonal gap; back vanes reduce axial thrust
Dry shaft: no special materials required
Bearing assembly in reinforced, adjustable design
Mechanical seal fitted in conical shaft seal chamber for optimum circulation around the mechanical seal, venting and drainage of the shaft seal chamber
