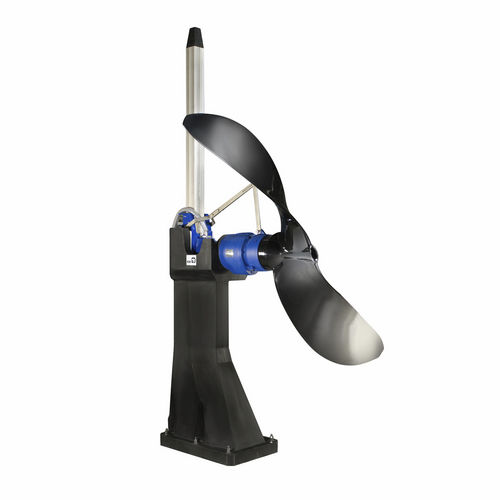

Propeller mixer Amaprop

batchfor liquidshorizontal

Horizontal submersible mixer with self-cleaning ECB propeller, close-coupled design, with coaxial spur gear drive. Explosion-proof version available. Main Applications Environmental engineering, particularly for handling municipal and industrial waste water and sludges. Circulating, keeping in suspension and inducing flow: In nitrification tanks and denitrification tanks In activated sludge tanks In sludge storage tanks Benefits Energy-efficient due to electric motor with efficiency levels comparable to those of standardised motors to IEC 60034-30 standard, available as synchronous reluctance motor with IE5 Ultra Premium Efficiency or three-phase asynchronous motor with IE3 Premium Efficiency Absolutely break-proof due to self-cleaning ECB propeller: blades made of glass fibre reinforced epoxy resin with protective gel coating in 2- or 3-blade design Maximum operating reliability thanks to 3-fold dynamic sealing system consisting of two mechanical seals and a lip seal. Perfectly protected by absolutely water-tight cable gland protecting the motor against moisture Motor monitored by temperature sensors to prevent it from overheating Stability and even longer service life of AmaRoc accessories made of the innovative NoriRoc material Leakage chamber between oil chamber and gear unit for high reliability Everything under control thanks to sensor monitoring and evaluation 16,000 operating hours without oil changeAt least every three years (lubricant change)
