5-axis CNC controller 5VcompactRS232I/O
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Other characteristics
- compact
- Communication
- RS232
- Input/output
- I/O
Description

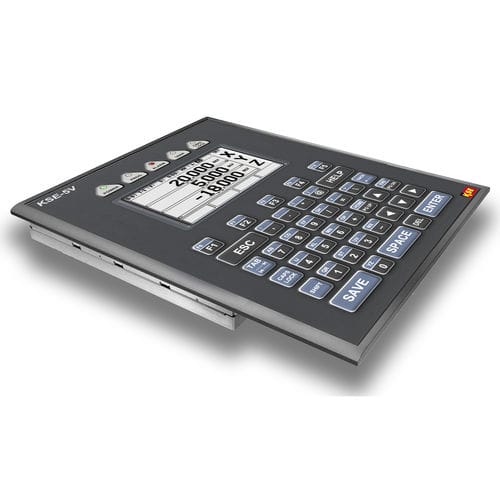

KSE-5V: a compact, flexible and powerful CNC.
KSE 5V is a compact 5-axes CNC with soft PLC, keyboard and graphic display, suitable for retrofits of machine-centres with ISO programs as well as for OEM equipment.
The wide range of connection (RS232, USB, CanBus, Ethernet) makes the controller extremely flexible. The integrated PLC controls axes and I/O.
As all other KSE ISO controls, the KSE-5V includes functions for circular and elliptical interpolation.
KSE-5V
Panel-based CNC with ISO interpreter
Dedicated sw versions
Keyboard with special keys
Compact Flash card, USB and Ethernet interfaces
Ethernet interface for connection to local network and global service
Soft PLC with AWL programming
I/O interface based on KSE protocol/CanBus/Profibus for the connection of I/O devices and control panels
Up to 5 axes/spindles
Solutions:
KSE5V-AVR - Press roll feed with electronic cams.
KSE5V-EPT-XYB - Portable push-pull expander.
KSE5V-ISO - ISO control for 5-axis or 4-axis + spindle.
KSE5V-PR - Press with electronic cams.
KSE5V-SFZ - Winding coiler with pull preset.
